You can setups webhooks to receive notifications about particular events, by creating a new webhook connection and specifying which events you want to subscribe too. You can also limit the webhooks by campaign.

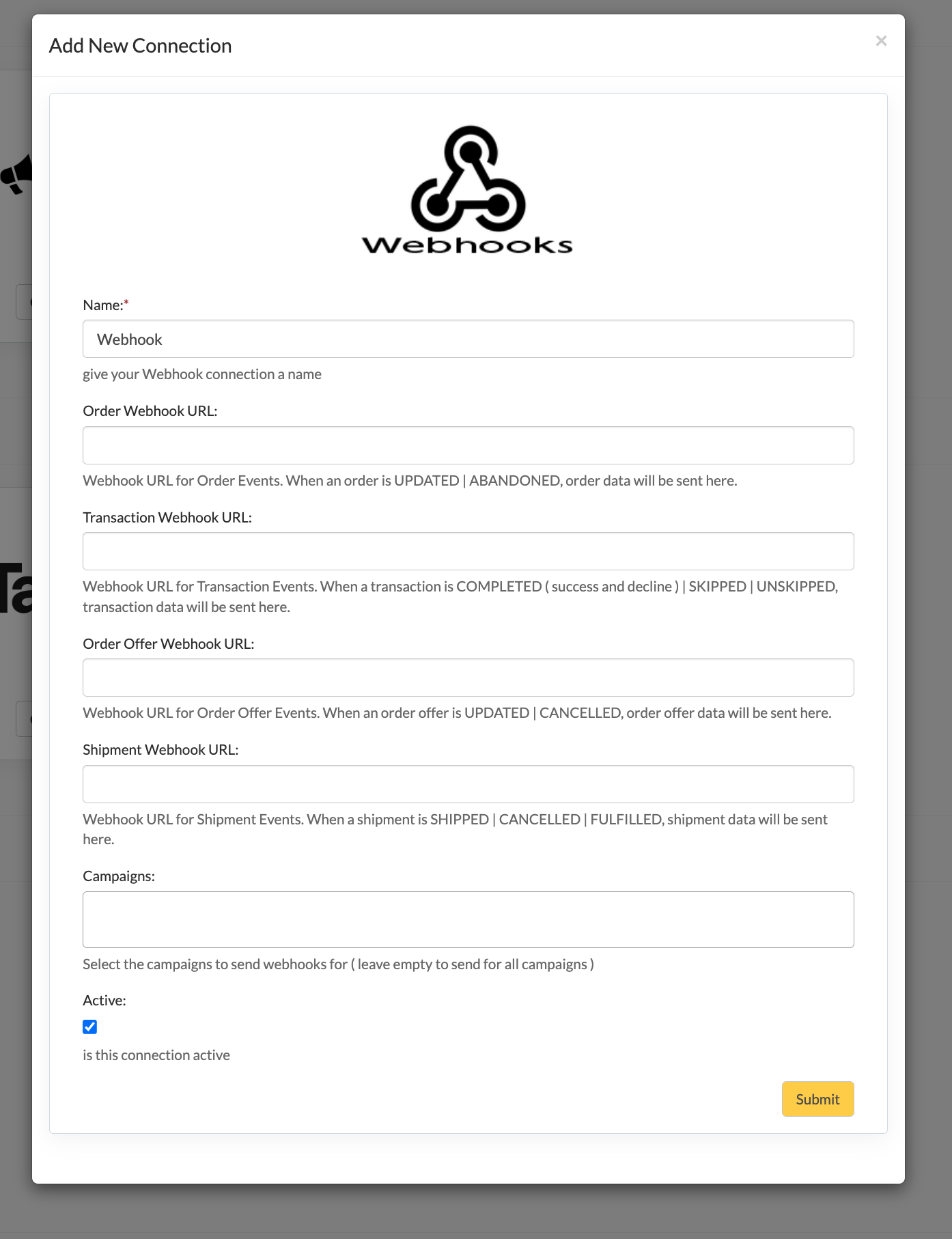

How to Add a Webhook
- In the Home Menu go to Connections
- Click + Add New and select Webhook
- Enter your Webhook URL for the Events needed
- If applicable, select Campaigns associated with the webook for transaction details to be pushed. **Leave blank if all campaigns apply
(click to expand)
And once configured, you can send a test event to each of your webhook endpoints.
Webhook format:
After you setup a webhook, the events that you specified will trigger a webhook notification each time they occur. This notification contains a JSON payload with this format
1{
2 "webhook_type": "order", // the webhook object type
3 "webhook_event": "order_updated", // the webhook event type
4 "webhook_event_id": "4806", // the unique webhook event id
5 "webhook_event_date": "2021-03-19 18:38:40", // the webhook event date
6 "webhook_data": { // payload of the webhook event }
7}List of supported webhook events:
- Order - Order is Updated or Abandoned
- Transaction - Transaction is Completed, Skipped or Unskipped
- Order Offer - Order Offer is Updated or Cancelled
- Shipment - Shipment is Shipped, Cancelled or Fulfilled
Order Webhooks
|
Event Type |
Description |
|---|---|
|
order_updated |
Whenever an order is updated. Includes events when a note is added to the order, like when a transaction or a shipment is updated. Limited to 1 webhook per minute. |
|
order_abandonned |
Whenever an order is set as abandonned. The delay for a partial order to be set as abandonned is defined on the campaign. |
The payload is similar to the api response from
/order/view/{order_id}?with=order_offers,customer,order_revisions
Example:
1{
2 "webhook_type": "order",
3 "webhook_event": "order_updated",
4 "webhook_event_id": "1324319",
5 "webhook_event_date": "2021-04-15 11:13:33",
6 "webhook_data": {
7 "order": {
8 "id": "223827",
9 "customer_id": "104857",
10 "customers_address_billing_id": "228286",
11 "customers_address_shipping_id": "228286",
12 "campaign_id": "2",
13 "order_notes": "Shipment #447405 was shipped with tracking number 607858298deed",
14 "created_by": "api@demo.sublytics.com",
15 "modified_by": "admin@demo.sublytics.com",
16 "date_created": "2021-04-15 11:13:33",
17 "date_ordered": "2021-04-15 11:13:33",
18 "date_modified": "2021-04-15 11:13:45",
19 "ip_address": "0",
20 "is_test": "1",
21 "order_discount": null,
22 "order_pixel": null,
23 "order_pixel_block": null,
24 "tracking1": "facebook",
25 "tracking2": "paid social",
26 "tracking3": "Prospecting",
27 "tracking4": "",
28 "tracking5": null,
29 "tracking6": null,
30 "tracking7": null,
31 "tracking8": null,
32 "tracking9": null,
33 "tracking10": null,
34 "tracking11": null,
35 "tracking12": null,
36 "tracking13": null,
37 "tracking14": null,
38 "tracking15": null,
39 "tracking16": null,
40 "tracking17": null,
41 "tracking18": null,
42 "tracking19": null,
43 "tracking20": null,
44 "user_agent": "Other|Desktop|0|0|0|0",
45 "order_offers": [
46 {
47 "id": "311858",
48 "offer_id": "52",
49 "offer_name": "Expert Mens Box - 1 month",
50 "order_offer_quantity": "1",
51 "order_offer_price": "5.00",
52 "is_recurring": "1",
53 "order_offer_upsell": null,
54 "status_type_id": "Active",
55 "connection_status_type_name": "Active",
56 "discount_id": null,
57 "cancel_type_id": null,
58 "cancel_by": null,
59 "date_cancel": "0000-00-00 00:00:00",
60 "date_reactivate": "0000-00-00 00:00:00",
61 "date_ordered": "2021-04-15 11:13:34",
62 "date_created": "2021-04-15 11:13:33",
63 "date_modified": "2021-04-15 11:13:34",
64 "order_offer_notes": "Order Offer marked as Active due to completed transaction",
65 "is_test": "1"
66 },
67 {
68 "id": "311859",
69 "offer_id": "95",
70 "offer_name": "Gift Card",
71 "order_offer_quantity": "1",
72 "order_offer_price": "25.00",
73 "is_recurring": "0",
74 "order_offer_upsell": null,
75 "status_type_id": "Complete",
76 "connection_status_type_name": "Complete",
77 "discount_id": null,
78 "cancel_type_id": null,
79 "cancel_by": null,
80 "date_cancel": "0000-00-00 00:00:00",
81 "date_reactivate": "0000-00-00 00:00:00",
82 "date_ordered": "2021-04-15 11:13:34",
83 "date_created": "2021-04-15 11:13:33",
84 "date_modified": "2021-04-15 11:13:34",
85 "order_offer_notes": "Order has reached its final billing cycle and changed status to Complete",
86 "is_test": "1"
87 }
88 ],
89 "customer": {
90 "customer_id": "104857",
91 "connection_id": "1",
92 "first_name": "Cody",
93 "last_name": "Smith",
94 "email": "cody.smith@vriostagingtestorder.com",
95 "phone": "(562)-409-0578",
96 "is_blacklist": "No",
97 "is_fraud": "No",
98 "customer_notes": "Customer created"
99 },
100 "order_revisions": [
101 {
102 "id": "3865002",
103 "modified_by": "api@demo.sublytics.com",
104 "orders_revision_type_id": null,
105 "order_revision_value": null,
106 "order_notes": "Order created",
107 "date_modified": "2021-04-15 11:13:33"
108 },
109 {
110 "id": "3865003",
111 "modified_by": "api@demo.sublytics.com",
112 "orders_revision_type_id": null,
113 "order_revision_value": null,
114 "order_notes": "Transaction created ID #853563",
115 "date_modified": "2021-04-15 11:13:33"
116 },
117 {
118 "id": "3865004",
119 "modified_by": "api@demo.sublytics.com",
120 "orders_revision_type_id": null,
121 "order_revision_value": null,
122 "order_notes": "Transaction created ID #853564",
123 "date_modified": "2021-04-15 11:13:33"
124 },
125 {
126 "id": "3865005",
127 "modified_by": "api@demo.sublytics.com",
128 "orders_revision_type_id": null,
129 "order_revision_value": null,
130 "order_notes": "Transaction created ID #853565",
131 "date_modified": "2021-04-15 11:13:33"
132 },
133 {
134 "id": "3865006",
135 "modified_by": "api@demo.sublytics.com",
136 "orders_revision_type_id": null,
137 "order_revision_value": null,
138 "order_notes": "Order marked as complete due to completed transaction",
139 "date_modified": "2021-04-15 11:13:33"
140 },
141 {
142 "id": "3865007",
143 "modified_by": "api@demo.sublytics.com",
144 "orders_revision_type_id": null,
145 "order_revision_value": null,
146 "order_notes": "Shipment #447405 was created",
147 "date_modified": "2021-04-15 11:13:34"
148 },
149 {
150 "id": "3865008",
151 "modified_by": "api@demo.sublytics.com",
152 "orders_revision_type_id": null,
153 "order_revision_value": null,
154 "order_notes": "Transaction created ID #853566",
155 "date_modified": "2021-04-15 11:13:34"
156 },
157 {
158 "id": "3865009",
159 "modified_by": "api@demo.sublytics.com",
160 "orders_revision_type_id": null,
161 "order_revision_value": null,
162 "order_notes": "Shipment #447406 was created",
163 "date_modified": "2021-04-15 11:13:34"
164 },
165 {
166 "id": "3865045",
167 "modified_by": "api@demo.sublytics.com",
168 "orders_revision_type_id": "Fulfillment",
169 "order_revision_value": null,
170 "order_notes": "Shipment #447405 was shipped with tracking number 607858298deed",
171 "date_modified": "2021-04-15 11:13:45"
172 }
173 ]
174 }
175 }
176}Transaction
|
Event Type |
Description |
|---|---|
|
transaction_completed |
Whenever a transaction is completed. This includes success and declines and all those transactions types : Sale, Refund, Void, Chargeback, Alert, Auth, Capture. |
|
transaction_skipped |
Whenever a transaction is skipped. |
|
transaction_unskipped |
Whenever a transaction is unskipped. |
The payload is similar to the api response from
/transaction/view/{transaction_id}?with=order,transaction_order_offers,order_revisions,customer,customer_card,customer_address_billing,customer_address_shipping,merchant
Example:
1{
2 "webhook_type": "transaction",
3 "webhook_event": "transaction_completed",
4 "webhook_event_id": "1324324",
5 "webhook_event_date": "2021-04-15 11:13:34",
6 "webhook_data": {
7 "transaction": {
8 "id": "853565",
9 "order_offer_id": null,
10 "offer_name": null,
11 "payment_method_id": "Credit Card",
12 "transaction_type_id": "Sale",
13 "transaction_charge": "Yes",
14 "is_recent": "No",
15 "transaction_cycle": "1",
16 "transaction_attempt": "1",
17 "transaction_declined": "APPROVED",
18 "merchant_id": "4",
19 "response_code": "100",
20 "gateway_response_id": "2957",
21 "gateway_auth_code": "ABCD",
22 "gateway_response_code": "100",
23 "gateway_response_description": "Transaction was approved",
24 "gateway_response_avs": "Y",
25 "gateway_response_cvv": "Y",
26 "processor_response_text": "",
27 "currency_id": "USD",
28 "transaction_price": "30.00",
29 "transaction_discount_total": "0.00",
30 "transaction_shipping": "0.00",
31 "transaction_sub_total": "30.00",
32 "transaction_tax": "0.00",
33 "transaction_fee": "1.60",
34 "customer_balance_applied": "0.00",
35 "gift_card_applied": "0.00",
36 "transaction_total": "30.00",
37 "order_discount_total": null,
38 "check_number": null,
39 "check_amount": null,
40 "dunning_cycle_id": null,
41 "dunning_cycle_total": "0.00",
42 "quantity_discount_cycle_id": null,
43 "quantity_discount_cycle_total": "0.00",
44 "discount_cycle_id": null,
45 "discount_cycle_total": "0.00",
46 "date_scheduled": "2021-04-15 11:13:33",
47 "date_complete": "2021-04-15 11:13:33",
48 "date_cancelled": "0000-00-00 00:00:00",
49 "date_skip": "0000-00-00 00:00:00",
50 "rebill_date": "2021-05-15 04:00:00",
51 "original_attempt_date": "2021-04-15 11:13:34",
52 "cycle_revenue": "5.00",
53 "cycle_revenue_date": "2021-04-15 11:13:34",
54 "cycle_revenue_attempt": "1",
55 "date_modified": "2021-04-15 11:13:33",
56 "transaction_final": "0",
57 "transaction_charge_id": "853565",
58 "transaction_notes": "Transaction result processed",
59 "created_by": "api@demo.sublytics.com",
60 "modified_by": "api@demo.sublytics.com",
61 "offer_id": null,
62 "product_id": null,
63 "item_id": null,
64 "offer_cycle_transaction_parent_id": null,
65 "transaction_parent_id": null,
66 "parent_date_complete": null,
67 "transaction_initial_id": null,
68 "is_prepaid": "No",
69 "customer_card_type_id": "Mastercard",
70 "customer_card_bin": "411122",
71 "chargeback_date": null,
72 "chargeback_code": null,
73 "chargeback_reference_id": null,
74 "chargeback_case_id": null,
75 "odd_rebill": "0.00",
76 "odd_cancel": "0.00",
77 "transaction_total_usd": "30.00",
78 "transaction_shipping_usd": "0.00",
79 "transaction_tax_usd": "0.00",
80 "transaction_price_usd": "30.00",
81 "customer_balance_applied_usd": "0.00",
82 "transaction_fee_usd": "1.60",
83 "gift_card_applied_usd": "0.00",
84 "order": {
85 "order_id": "223827",
86 "customer_id": "104857",
87 "customers_address_billing_id": "228286",
88 "customers_address_shipping_id": "228286",
89 "campaign_id": "2",
90 "order_notes": "Shipment #447405 was shipped with tracking number 607858298deed",
91 "created_by": "api@demo.sublytics.com",
92 "modified_by": "api@demo.sublytics.com",
93 "date_created": "2021-04-15 11:13:33",
94 "date_ordered": "2021-04-15 11:13:33",
95 "date_modified": "2021-04-15 11:13:45",
96 "ip_address": "0",
97 "is_test": "1",
98 "order_discount": null,
99 "order_pixel": null,
100 "order_pixel_block": null,
101 "tracking1": "facebook",
102 "tracking2": "paid social",
103 "tracking3": "Prospecting",
104 "tracking4": "",
105 "tracking5": null,
106 "tracking6": null,
107 "tracking7": null,
108 "tracking8": null,
109 "tracking9": null,
110 "tracking10": null,
111 "tracking11": null,
112 "tracking12": null,
113 "tracking13": null,
114 "tracking14": null,
115 "tracking15": null,
116 "tracking16": null,
117 "tracking17": null,
118 "tracking18": null,
119 "tracking19": null,
120 "tracking20": null,
121 "user_agent": "Other|Desktop|0|0|0|0"
122 },
123 "transaction_order_offers": [
124 {
125 "id": "311858",
126 "offer_id": "52",
127 "offer_name": "Expert Mens Box - 1 month",
128 "order_offer_quantity": "1",
129 "order_offer_price": "5.00",
130 "is_recurring": "1",
131 "order_offer_upsell": null,
132 "status_type_id": "Active",
133 "connection_status_type_name": "Active",
134 "discount_id": null,
135 "cancel_type_id": null,
136 "cancel_by": null,
137 "date_cancel": "0000-00-00 00:00:00",
138 "date_reactivate": "0000-00-00 00:00:00",
139 "date_ordered": "2021-04-15 11:13:34",
140 "date_created": "2021-04-15 11:13:33",
141 "date_modified": "2021-04-15 11:13:34",
142 "order_offer_notes": "Order Offer marked as Active due to completed transaction",
143 "is_test": "1"
144 },
145 {
146 "id": "311859",
147 "offer_id": "95",
148 "offer_name": "Gift Card",
149 "order_offer_quantity": "1",
150 "order_offer_price": "25.00",
151 "is_recurring": "0",
152 "order_offer_upsell": null,
153 "status_type_id": "Complete",
154 "connection_status_type_name": "Complete",
155 "discount_id": null,
156 "cancel_type_id": null,
157 "cancel_by": null,
158 "date_cancel": "0000-00-00 00:00:00",
159 "date_reactivate": "0000-00-00 00:00:00",
160 "date_ordered": "2021-04-15 11:13:34",
161 "date_created": "2021-04-15 11:13:33",
162 "date_modified": "2021-04-15 11:13:34",
163 "order_offer_notes": "Order has reached its final billing cycle and changed status to Complete",
164 "is_test": "1"
165 }
166 ],
167 "order_revisions": [
168 {
169 "id": "3865002",
170 "modified_by": "api@demo.sublytics.com",
171 "orders_revision_type_id": null,
172 "order_revision_value": null,
173 "order_notes": "Order created",
174 "date_modified": "2021-04-15 11:13:33"
175 },
176 {
177 "id": "3865003",
178 "modified_by": "api@demo.sublytics.com",
179 "orders_revision_type_id": null,
180 "order_revision_value": null,
181 "order_notes": "Transaction created ID #853563",
182 "date_modified": "2021-04-15 11:13:33"
183 },
184 {
185 "id": "3865004",
186 "modified_by": "api@demo.sublytics.com",
187 "orders_revision_type_id": null,
188 "order_revision_value": null,
189 "order_notes": "Transaction created ID #853564",
190 "date_modified": "2021-04-15 11:13:33"
191 },
192 {
193 "id": "3865005",
194 "modified_by": "api@demo.sublytics.com",
195 "orders_revision_type_id": null,
196 "order_revision_value": null,
197 "order_notes": "Transaction created ID #853565",
198 "date_modified": "2021-04-15 11:13:33"
199 },
200 {
201 "id": "3865006",
202 "modified_by": "api@demo.sublytics.com",
203 "orders_revision_type_id": null,
204 "order_revision_value": null,
205 "order_notes": "Order marked as complete due to completed transaction",
206 "date_modified": "2021-04-15 11:13:33"
207 },
208 {
209 "id": "3865007",
210 "modified_by": "api@demo.sublytics.com",
211 "orders_revision_type_id": null,
212 "order_revision_value": null,
213 "order_notes": "Shipment #447405 was created",
214 "date_modified": "2021-04-15 11:13:34"
215 },
216 {
217 "id": "3865008",
218 "modified_by": "api@demo.sublytics.com",
219 "orders_revision_type_id": null,
220 "order_revision_value": null,
221 "order_notes": "Transaction created ID #853566",
222 "date_modified": "2021-04-15 11:13:34"
223 },
224 {
225 "id": "3865009",
226 "modified_by": "api@demo.sublytics.com",
227 "orders_revision_type_id": null,
228 "order_revision_value": null,
229 "order_notes": "Shipment #447406 was created",
230 "date_modified": "2021-04-15 11:13:34"
231 },
232 {
233 "id": "3865045",
234 "modified_by": "api@demo.sublytics.com",
235 "orders_revision_type_id": "Fulfillment",
236 "order_revision_value": null,
237 "order_notes": "Shipment #447405 was shipped with tracking number 607858298deed",
238 "date_modified": "2021-04-15 11:13:45"
239 }
240 ],
241 "customer": {
242 "customer_id": "104857",
243 "connection_id": null,
244 "first_name": "Cody",
245 "last_name": "Smith",
246 "email": "cody.smith@vriostagingtestorder.com",
247 "phone": "(562)-409-0578",
248 "is_blacklist": "No",
249 "is_fraud": "No",
250 "customer_notes": "Customer created"
251 },
252 "customer_card": {
253 "customer_card_id": "195544",
254 "card_type_id": "Mastercard",
255 "card_number": "411122XXXXX4444",
256 "card_exp_month": "4",
257 "card_exp_year": "2023",
258 "card_prepaid": "0",
259 "cc_bin_is_prepaid": "0"
260 },
261 "customer_address_billing": {
262 "customer_address_id": "228286",
263 "fname": "Cody",
264 "lname": "Smith",
265 "organization": null,
266 "address1": "9827 N Stelling Rd",
267 "address2": null,
268 "city": "Chandler",
269 "country": "US",
270 "state": "Hawaii",
271 "zipcode": "50600"
272 },
273 "customer_address_shipping": {
274 "customer_address_id": "228286",
275 "fname": "Cody",
276 "lname": "Smith",
277 "organization": null,
278 "address1": "9827 N Stelling Rd",
279 "address2": null,
280 "city": "Chandler",
281 "country": "US",
282 "state": "Hawaii",
283 "zipcode": "50600"
284 },
285 "merchant": {
286 "merchant_id": "4",
287 "merchant_name": "Mens Shave Club",
288 "merchant_mid_id": "",
289 "merchant_descriptor": "",
290 "merchant_phone": "333-333-4444",
291 "merchant_url": "",
292 "merchant_processing_limit": "0",
293 "merchant_processing_inforce": "0",
294 "merchant_state": "",
295 "merchant_tax": "0.00",
296 "merchant_3ds": "0",
297 "merchant_processing_perc": "5"
298 }
299 }
300 }
301}
Order offer
|
Event Type |
Description |
|---|---|
|
order_offer_updated |
Whenever an order offer is reactivated, paused, unpaused, swapped or the quantity is changed. |
|
order_offer_cancelled |
Whenever an order offer is cancelled |
The payload is similar to the api response from
/order_offer/view/{order_offer_id}
Example:
1{
2 "webhook_type": "order_offer",
3 "webhook_event": "order_offer_updated",
4 "webhook_event_id": "4779",
5 "webhook_event_date": "2021-03-19 14:46:01",
6 "webhook_data": {
7 "order_offer": {
8 "id": "145148",
9 "offer_id": "2371",
10 "offer_name": "Test Box",
11 "order_offer_quantity": "5",
12 "order_offer_price": "25.00",
13 "is_recurring": "1",
14 "order_offer_upsell": null,
15 "status_type_id": "Active",
16 "connection_status_type_name": "Active",
17 "discount_id": null,
18 "cancel_type_id": null,
19 "cancel_by": null,
20 "date_cancel": "0000-00-00 00:00:00",
21 "date_reactivate": null,
22 "date_ordered": "2021-03-19 10:58:15",
23 "date_created": "2021-03-19 10:58:12",
24 "date_modified": "2021-03-19 12:46:00",
25 "order_offer_notes": "Order quantity changed to 5. ",
26 "is_test": "1"
27 }
28 }
29}
Shipment
|
Event Type |
Description |
|---|---|
|
shipment_fulfilled |
Whenever shipment information is sent to the fulfillment connection. |
|
shipment_shipped |
Whenever a tracking number is added to a shipment. |
|
shipment_cancelled |
Whenever a shipment is cancelled. |
The payload is similar to the api response from
/shipment/view/{shipment_id}
Example:
1{
2 "webhook_type": "shipment",
3 "webhook_event": "shipment_shipped",
4 "webhook_event_id": "1324396",
5 "webhook_event_date": "2021-04-15 11:13:45",
6 "webhook_data": {
7 "shipment": {
8 "id": "447405",
9 "shipment_status_id": "Pending Tracking",
10 "shipment_tracking_id": "607858298deed",
11 "carrier_id": null,
12 "shipping_profile_id": "Free Shipping over $10",
13 "date_cancel": "0000-00-00 00:00:00",
14 "date_scheduled": "2021-04-15 11:13:33",
15 "date_complete": "2021-04-15 11:13:45",
16 "date_scan": "0000-00-00 00:00:00",
17 "date_deliver": "0000-00-00 00:00:00",
18 "date_return": "0000-00-00 00:00:00",
19 "date_rma": "0000-00-00 00:00:00",
20 "shipment_rma": null
21 }
22 }
23}
Webhook events logs
You will then be able to see each webhook sent in the related Events section, for example for order, under Order events:
